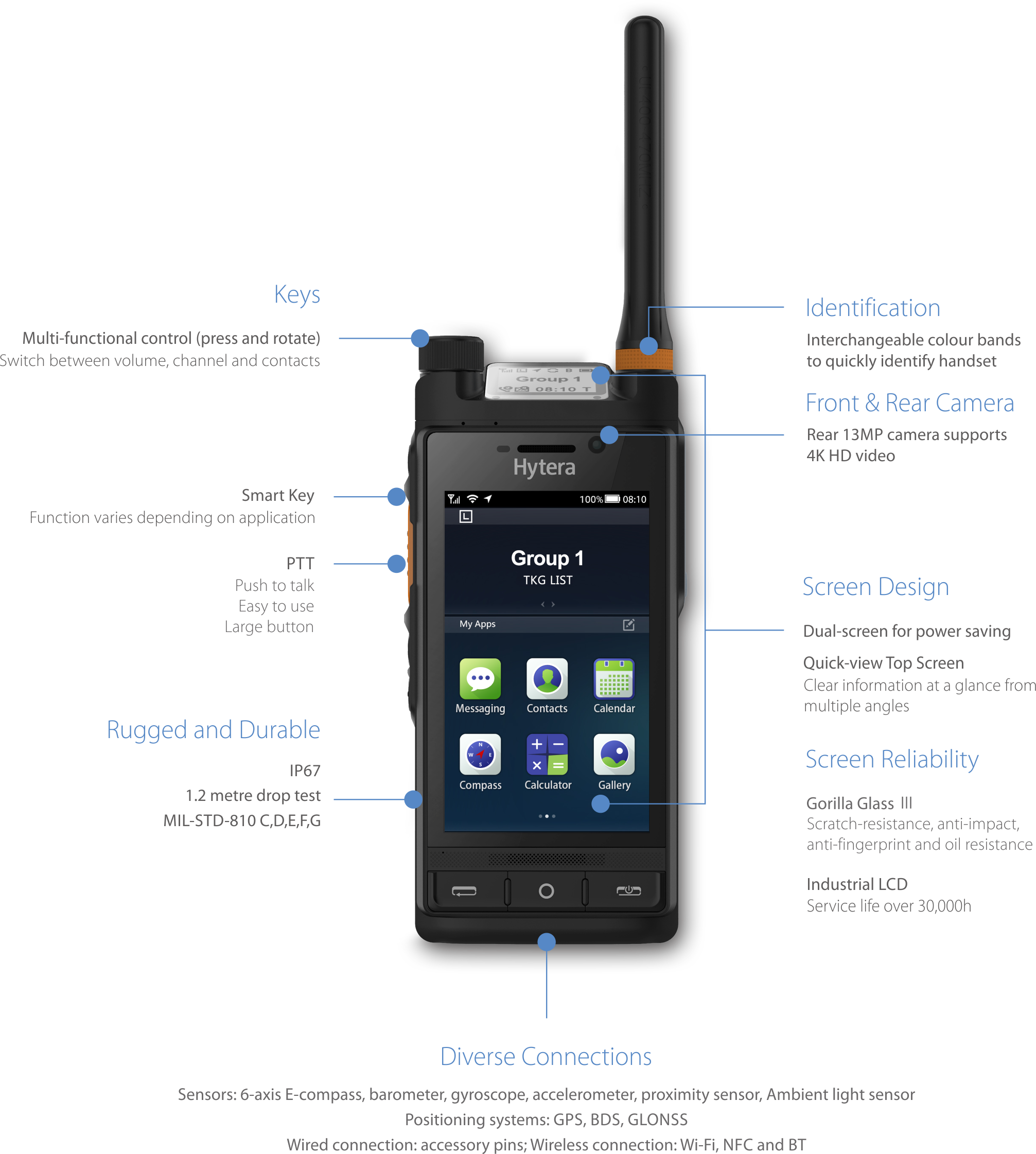

بیسیم حرفه ای PDC760












Standards and Frequencies
DMR
Analog FM
ETSI DMR Tier Ⅱ, Ⅲ
350-527 MHZ
TETRA 350-470 MHz
LTE
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28
TDD-LTE: B38/B39/B40/B41
CDMA
CDMA 1xRTT BC0
CDMA2000 1xEV-DO BC0
WCDMA B1/B8
TD-SCDMA B34/B39
GSM 850/900/1800/1900MHz
Wi-Fi 802.11 b/g/n, 2.4GHz
NFC 13.56MHz
Dual BT V4.2 LE+EDR
Positioning System GPS, BDS, GLONASS
Sensors
Proximity Sensor
Ambient Light Sensor
6-axis E-Compass
Barometer
Gyroscope
Accelerometer
General Specifications
Dimensions(H x W x D) 139.5 x 68 x 25.3mm
Weight (with antenna &battery) ≤375g
AP Processor Qualcomm 8-core, 2.0GHz
Memory
Broadband
RAM: 3GB
ROM: 32GB eMMC
Expandable to 128GB with Micro SD card
Narrowband
Expandable to 16GB with Micro SD card
Ports
USB 2.0
20PIN Accessory/Charging Port
Top Display 1.0” 128x96
Main Display
4.0” 800x480
Capacitive, Touch screen, Gloves Compatible
Front Camera 13MP Auto Focus
Rear Camera 13MP Auto Focus
Operating Voltage 7.4V(Rated)
Battery
Standard 2900 mAh Li-polymer
Optional 4000 mAh
Battery Life

Standard Battery : 14h

12h voice(5:5:90)+2h video

Optional Battery : 20h

18h voice(5:5:90)+2h video

Transceiver
Item DMR/Analog FM TETRA
Channel Spacing 25/20/12.5kHz 25kHz
TX Power 1W/4W 1W(class 4) & 1.8W(class 3L)
RX Sensibility ≤-121dBm

Static:≤-116dBm(-117dBm typ.)

Dynamic:≤-106dBm(-109dBm typ.)

Inter-modulation ≥65dB ≥62dB
Blocking ≥84dB

50 kHz to 100 kHz ≥69 dB

100 kHz to 200 kHz ≥74 dB

200 kHz to 500 kHz ≥79 dB

500 kHz≥84 dB

Suppression of SpuriousResponse ≥70dB ≥64dB
Frequency Stability ±0.5ppm ±0.5ppm
Antenna Impedance 50Ω 50Ω
Audio Output 2W(Rated) 2W(Rated)
Audio Distortion ≤3% ≤3%
Microphone

NRR: 30dB(Static),

20dB(Non-static)

AEC: > 60dB

NRR: 30dB(Static),

20dB(Non-static)

AEC: > 60dB

Video and Imaging
Video File Types
3GPP(.3gp), MPEG-4(.mp4), QuickTime(.mov),
WEBM(.webm), Windows Media(.asf,.wmv),
RealMedia(.rmvb, .rm), MPEG-PS(.mpg, .mpeg),
MPEG-TS(.ts), AVI(.avi), Matroska(.mkv)
Image File Types JPEG(.jpg), GIF(.gif), PNG(.png), BMP(.bmp)
Video RecordingQuality
Front Camera: 1080P HD up to 30 frames
per second(fps)
Rear Camera: 4K HD
Watermark Video and imaging
Audio
File Types
MP3(.mp3), WAV(.wav), 3GPP(.3gp),
MPEG-4(.mp4,.m4a), ATDS raw AAC(.aac),
MPEG-TS(.ts), FLAC(.flac), MIDI(.midi, .xmf, .mxmf ),
RTTTL/RTX(.rtttl, .rtx), OTA(.ota), iMelody(.imy),
Ogg(.ogg), Matroska(.mka), QCELP(.qcp),
RealMedia(.ra), Windows Media(.wma), AC3(.ac3)
Input
Triple Mic Noise Suppression
Wind Noise Suppression
Echo Cancellation
Environment Performance
Dust and Water Proof IEC 60529-IP67
Shock and Vibration MIL STD 810 C,D,E,F,G
Operating Temperature -20°C- 60°C
Storage Temperature -40°C - 85°C
